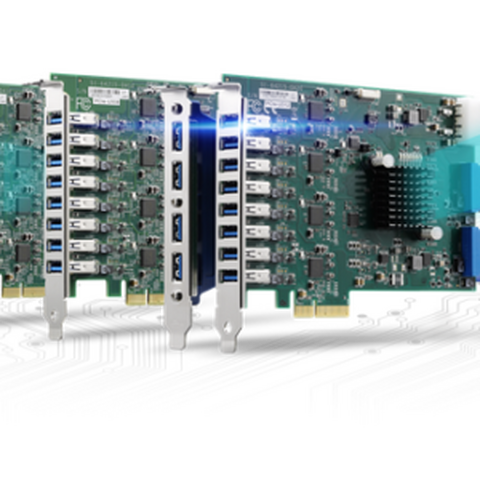

ADLINK's PCIe-U300 Series series is a PCI Express x4 Gen2 USB3 Vision frame grabber supporting 4/8/12 USB 3.1 Gen 1 ports for multiple USB3 Vision device connections with data transfer up to 5 Gb/s per port.
The PCIe-U300 Series supports 5V and up to up to max. 1500mA current per port for external USB3 Vision industrial cameras. To guarantee industrial-grade high-bandwidth performance for each port, four independent Fresco FL1100 USB 3.1 Gen 1 host controllers with PCI Express x4 Gen2 interface allow each USB port to provide up to 5Gbps bandwidth when operating four ports simultaneously. Also supported is software-programmable per-port power on/off control for fault recovery operations.
