12.1" up to 32" Industrial computer size panel PC

03/12/2021

New CPU platform

APLEX elevated the CPU platform from better performance than the previous one. Besides, with Intel UHD graphics 620 also broaden the application field in more usage.

  • 8th Gen. Intel Core i3/i5 Processors
  • Industrial compact size panel pc
  • Flat front panel touch screen
  • IP66 compliant front panel
Documents Tech question

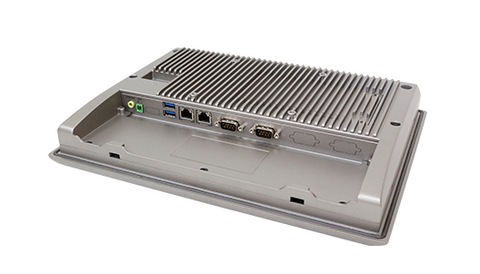

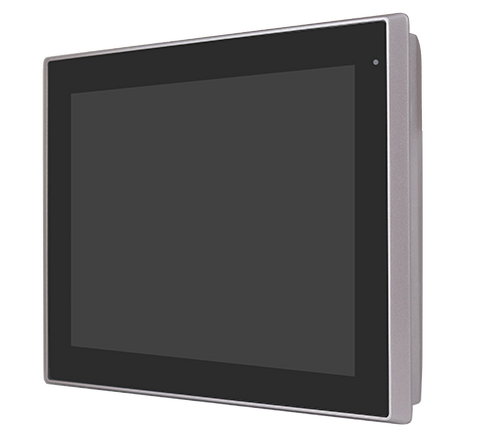

Schermafbeelding 2021 11 26 121019 Schermafbeelding 2021 11 26 121041

12.1" up to 32" Industrial computer size panel PC

  • Features
  • Applications
  • Technologies
  • Manufacturer
  • Documents

New CPU platform


APLEX elevated the CPU platform from better performance than the previous one. Besides, with Intel UHD graphics 620 also broaden the application field in more usage.

Backup battery

When outage occurs, the backup battery will protect the system by providing a short time of power to ARCHMI for shutting down properly.



MODELARCHMI-9XXB
Size
12,1"/15"/15,6"/17"/18,5"/19"/21,5"/32" TFT-LCD
CPU
8th Gen. Intel Core i3/i5 Processors
Memory
1 x 260Pin SO-DIMM DDR4 slot, up to 32GB 2400MHz
Storage
1 x M.2 M Key slot; (Support PCIe/SATA 2242/2280, Default 2242)
Expansion
1 x Internal Mini-PCIe slot full size / 1 x M.2 2230 E key socket for optional Wi-Fi 5/ Wi-Fi 6 module /1 x Nano SIM card holder
Construction
Aluminium Die-Casting chassis
IP rating
IP66 compliant front bezel
Expansion Option
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
2 x COM (RS-232) (TB-528C2)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Mini-PCIe + 1 x Power Button (TB-528C1U2P1)2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 type A (TB-528E1U2)
1 x LAN + 2 x USB 2.0 type A /45WPoE (TB528E1U2UPOE)

Applications & Markets

  • 19 Infrastructure

    Infrastructure

  • 8 Instrumentation

    T&M and instrumentation

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

Technologies

  • Shutterstock 1901551972

    Panel PCs & HMI

  • Touchscreen

    Touchscreen technologies

Aplex Technology

APLEX Technology Inc. is one of the leading brands in industrial computer products. The company is dedicated to satisfying customer’s needs by offering comprehensive solutions and applications.

Read more
Aplex Logo

Documents

  • ARCHMI 912 BPRH V1 0 pdf
