10 Gigabit Layer3 Backbone Modular Switch

10/11/2023

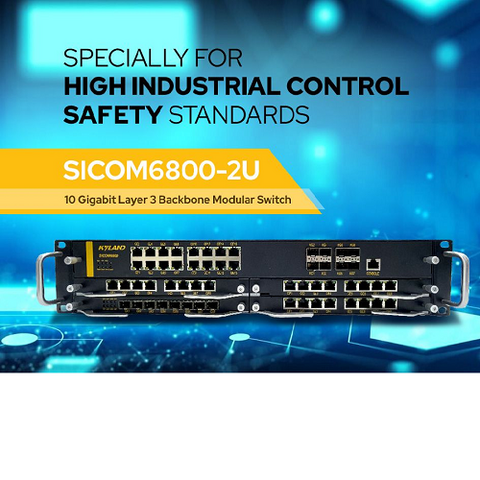

SICOM6800-2U is a 2U rackmount device in the SICOM6800 series. SICOM6800-2U is a Layer3 network management Ethernet switch designed for high industrial control safety requirements. SICOM6800-2U is a modular switch, the classis can provide 8 10 Gigabit SFP ports+16 Gigabit RJ45 ports, support 4 hot-swappable modules. Each module can provide 8 Gigabit SFP or RJ45 ports, SICOM6800-2U support hot-swappable high-voltage or low-voltage power modules, provide rich convenience for selection and application. SICOM6800-2U support rich Layer 2 software features such as port, VLAN, QinQ, multicast, QoS, and redundancy protocol. It support Layer3 functions such as static routing, OSPF, PIM, VRRP, and support IPv4 and IPv6 protocols. It also support rich maintenance methods and security protection functions. It supports hardware based 1588 time synchronization with a time accuracy of ± 100ns, and supports multiple management methods such as Console, Telnet, Web, and SNMP based network management software, It can be widely applied in backbone communication systems in various industries.

Main Features

  • Support up to 8 *10 Gigabit ports and 48 Gigabit ports
  • Modular design, Ethernet module and power module support hot-swappable
  • Support DRP/DHP redundancy protocol based on IEC62439-6, with recovery time < 20ms
  • Support rich diagnostic methods such as DDM, NQA, sflow, BFD, DLDP, etc
  • Support hardware based 1588 timing protocol with timing accuracy of ± 100ns
  • Support massive frame transmission, with a packet buffer of up to 48Mbit, ensuring efficient and stable video transmission
Documents Tech question
Kyland sicom6800

10 Gigabit Layer3 Backbone Modular Switch
