0.8 mm Pitch Interface Connectors with Increased Current Capacity

22/04/2022

Our newly developed “HDRP Series” is a range of I/O connectors designed with increased current capacity, while maintaining the compact size and robustness of the HDR Series.

Typically, the smaller the connector pitch, the lower the current capacity.

This product has been developed to meet a wider range of needs by increasing the current capacity from 0.5 A to between 1.0 A and 1.5 A,while retaining the smallest size in the industry and robust locking mechanism for I/O connectors with 0.8 mm pitch. Moreover,the insulator color has been changed to prevent incorrect connector engagement when used in combination with conventional products. This product is expected to be used in a wide range of applications that require control signals in addition to a low-power driving power supply,such as connection with control devices or devices with compact displays.

Main Features

  • Size: Industry’s smallest pitch of 0.8 mm
  • Number of pins: 14, 26, 50
  • Current capacity: 14 pins = 1.5 A, 26 pins = 1.2 A, 50 pins = 1.0 A
  • The HDRP Series will only be available with 26 pins when initially released, and the number of pins will be gradually increased.
Documents Tech question

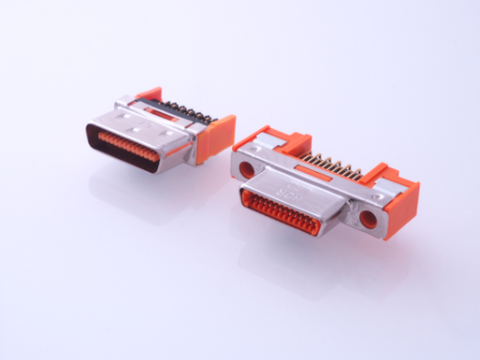

IMG OD NEW04 0001 01

0.8 mm Pitch Interface Connectors with Increased Current Capacity

  • Applications
  • Technologies
  • Manufacturer
  • Documents

Applications & Markets

  • 4 Medical Healthcare Fitness

    Medical, Healthcare & Fitness

  • 24 Telecom

    Wired data & telecom

  • 5 Industrial Automation

    Factory & Industrial Automation, Robotics

  • 8 Instrumentation

    T&M and instrumentation

Technologies

  • Shutterstock 1822775435

    Connectors

HTK

HTK is manufacturer of a full line-up of connectors. Developing and designing products for the computer, telecommunications, and instrumentation markets HTK offers a fitting solution, high quality and maximum value for interconnection where ever needed.

Read more
HTK Logo

Documents

  • 0,8 mm Pitch Interface Connectors with Increased Current Capacity HDRP Series
